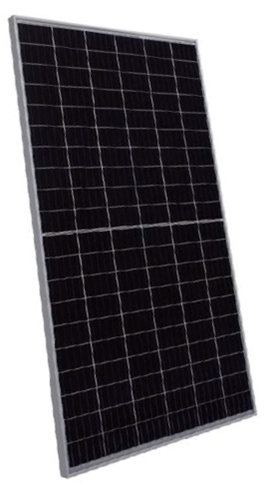

單玻單面PERC模組
|
高效單晶PERC模組擁有多主柵及半片技術,有效減少功率損失及熱斑,高模組發電瓦數有更多的發電量,提高投資酬率。
輸出功率
385W
模組轉換效率
21.13 %
|
型號 |
XS60CD-385 |
最大功率(Pmax) |
385W |
最大功率電壓 (Vmp) |
34.54V |
最大功率電流 (Imp) |
11.15A |
開路電壓(Voc) |
41.29V |
短路電流(Isc) |
11.57A |
模組轉換效率 |
21.13% |
最大系統電壓 |
1500V |
最大串聯電流 |
15A |
|
|
|
半片 G1 單面模組列表
Taiwan Product
電池數量 |
電池柵線 |
尺寸(mm) |
重量(kg) |
最大功率Pmax(W) |
最大功率電壓Vmp(V) |
最大功率電流Imp(A) |
開路電壓Voc(V) |
短路電流Isc(A) |
型號 |
模組轉換效率(%) |
120 |
5BB |
1,694×1,002×40 |
20.0(±5%) |
345 |
34.5 |
10.01 |
41.6 |
10.49 |
XS60CA-345 |
20.33 |
120 |
5BB |
1,694×1,002×40 |
20.0(±5%) |
350 |
34.7 |
10.09 |
41.8 |
10.53 |
XS60CA-350 |
20.62 |
120 |
5BB |
1,694×1,002×40 |
20.0(±5%) |
355 |
34.9 |
10.18 |
42 |
10.58 |
XS60CA-355 |
20.91 |
半片 M6 單面模組列表
Taiwan Product
電池數量 |
電池柵線 |
尺寸(mm) |
重量(kg) |
最大功率Pmax(W) |
最大功率電壓Vmp(V) |
最大功率電流Imp(A) |
開路電壓Voc(V) |
短路電流Isc(A) |
型號 |
模組轉換效率(%) |
120 |
9BB |
1,755×1,038×40 |
20.0(±5%) |
370 |
34.02 |
10.88 |
40.69 |
11.39 |
XS60CD-370 |
20.31 |
120 |
9BB |
1,755×1,038×40 |
20.0(±5%) |
375 |
34.20 |
10.97 |
40.89 |
11.45 |
XS60CD-375 |
20.59 |
120 |
9BB |
1,755×1,038×40 |
20.0(±5%) |
380 |
34.37 |
11.06 |
41.09 |
11.51 |
XS60CD-380 |
20.86 |
120 |
9BB |
1,755×1,038×40 |
20.0(±5%) |
385 |
34.54 |
11.15 |
41.29 |
11.57 |
XS60CD-385 |
21.13 |
144 |
9BB |
2,094×1,038×40 |
24.0(±5%) |
440 |
40.67 |
10.82 |
48.53 |
11.4 |
XS72CD-440 |
20.24 |
144 |
9BB |
2,094×1,038×40 |
24.0(±5%) |
445 |
40.87 |
10.89 |
48.78 |
11.44 |
XS72CD-445 |
20.47 |
144 |
9BB |
2,094×1,038×40 |
24.0(±5%) |
450 |
41.07 |
10.96 |
49.03 |
11.48 |
XS72CD-450 |
20.7 |
144 |
9BB |
2,094×1,038×40 |
24.0(±5%) |
455 |
41.26 |
11.03 |
49.28 |
11.52 |
XS72CD-455 |
20.93 |
半片 M10 單面模組列表
Taiwan Product
電池數量 |
電池柵線 |
尺寸(mm) |
重量(kg) |
最大功率Pmax(W) |
最大功率電壓Vmp(V) |
最大功率電流Imp(A) |
開路電壓Voc(V) |
短路電流Isc(A) |
型號 |
模組轉換效率(%) |
108 |
10BB |
1,722×1,133×40 |
23.0(±5%) |
400 |
30.22 |
13.24 |
37.39 |
13.92 |
XS54CH-400 |
20.50 |
108 |
10BB |
1,722×1,133×40 |
23.0(±5%) |
405 |
30.45 |
13.30 |
37.58 |
13.99 |
XS54CH-405 |
20.76 |
108 |
10BB |
1,722×1,133×40 |
23.0(±5%)) |
410 |
30.68 |
13.37 |
37.78 |
13.07 |
XS54CH-410 |
21.01 |
108 |
10BB |
1,722×1,133×40 |
23.0(±5%) |
415 |
30.91 |
13.43 |
37.97 |
14.14 |
XS54CH-415 |
21.27 |
108 |
10BB |
1,722×1,133×40 |
23.0(±5%) |
420 |
31.15 |
13.50 |
38.16 |
14.22 |
XS54CH-420 |
21.53 |
120 |
10BB |
1,907×1,133×40 |
25.0(±5%) |
450 |
33.95 |
13.26 |
41.45 |
13.97 |
XS60CH-450 |
20.83 |
120 |
10BB |
1,907×1,133×40 |
25.0(±5%) |
455 |
34.16 |
13.32 |
41.56 |
14.06 |
XS60CH-455 |
21.06 |
120 |
10BB |
1,907×1,133×40 |
25.0(±5%) |
460 |
34.36 |
13.39 |
41.68 |
14.14 |
XS60CH-460 |
21.29 |
120 |
10BB |
1,907×1,133×40 |
25.0(±5%) |
465 |
34.57 |
13.46 |
41.80 |
14.23 |
XS60CH-465 |
21.52 |
120 |
10BB |
1,907×1,133×40 |
25.0(±5%) |
470 |
34.78 |
13.52 |
41.92 |
14.31 |
XS60CH-470 |
21.75 |
144 |
10BB |
2,277×1,133×40 |
28.0(±5%) |
525 |
39.87 |
13.17 |
49.30 |
13.97 |
XS72CH-525 |
20.35 |
144 |
10BB |
2,277×1,133×40 |
28.0(±5%) |
530 |
40.09 |
13.22 |
49.42 |
14.04 |
XS72CH-530 |
20.54 |
144 |
10BB |
2,277×1,133×40 |
28.0(±5%) |
535 |
40.32 |
13.28 |
49.55 |
14.11 |
XS72CH-535 |
20.74 |
144 |
10BB |
2,277×1,133×40 |
28.0(±5%) |
540 |
40.54 |
13.33 |
49.67 |
14.18 |
XS72CH-540 |
20.93 |
|
